A fold down murphy bed

for the ultimate flexibility in van life.

Introducing the Frisco 170 floor plan.

Frisco 170

The versatility of a fold down murphy bed and day time seating to create a van with full access to the front and rear of the van. This floor plan is also equipped with an indoor enclosed shower, queen sized bed, kitchen, refrigerator/freezer, air conditioning, and ceiling fan.

Frisco 170 Spec Sheet | Mercedes Sprinter 170

Standard build options

Exterior

• 300W Renogy solar with controller and bluetooth monitoring

• 330AH Battle Born lithium batteries / Victron 3000W inverter charger

• 12V distribution hub / 30A shore power plug / DC to DC Battery isolator for alternator charging

• Nomadic Cooling X3 12V AC unit / MaxxAir 4500K RV roof vent

• USB / 12V / 120V outlets

• Recessed lighting 5 pucks with dimmer switch

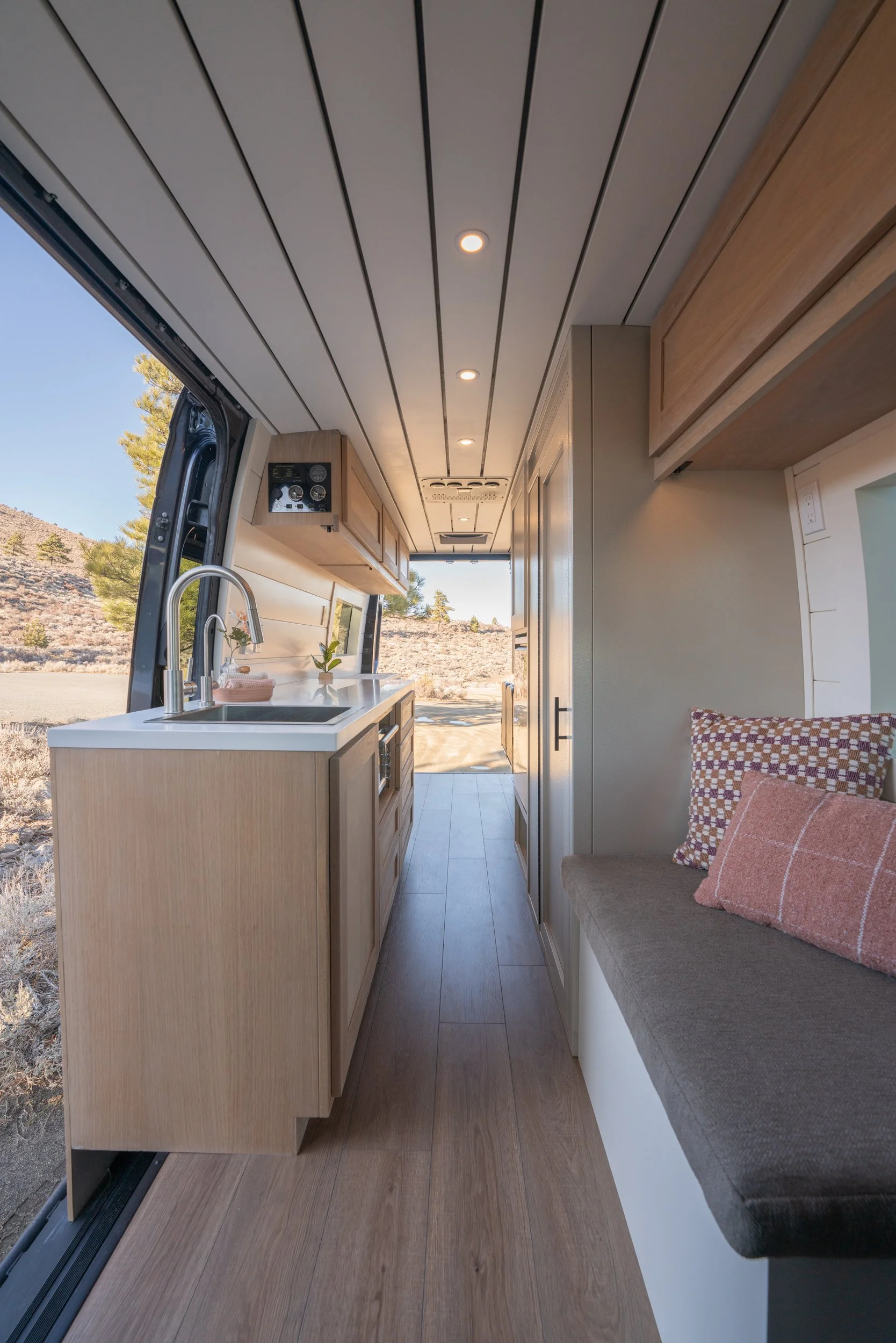

Interior

• Vanspeed capsules + paint matched to van exterior or Line-X

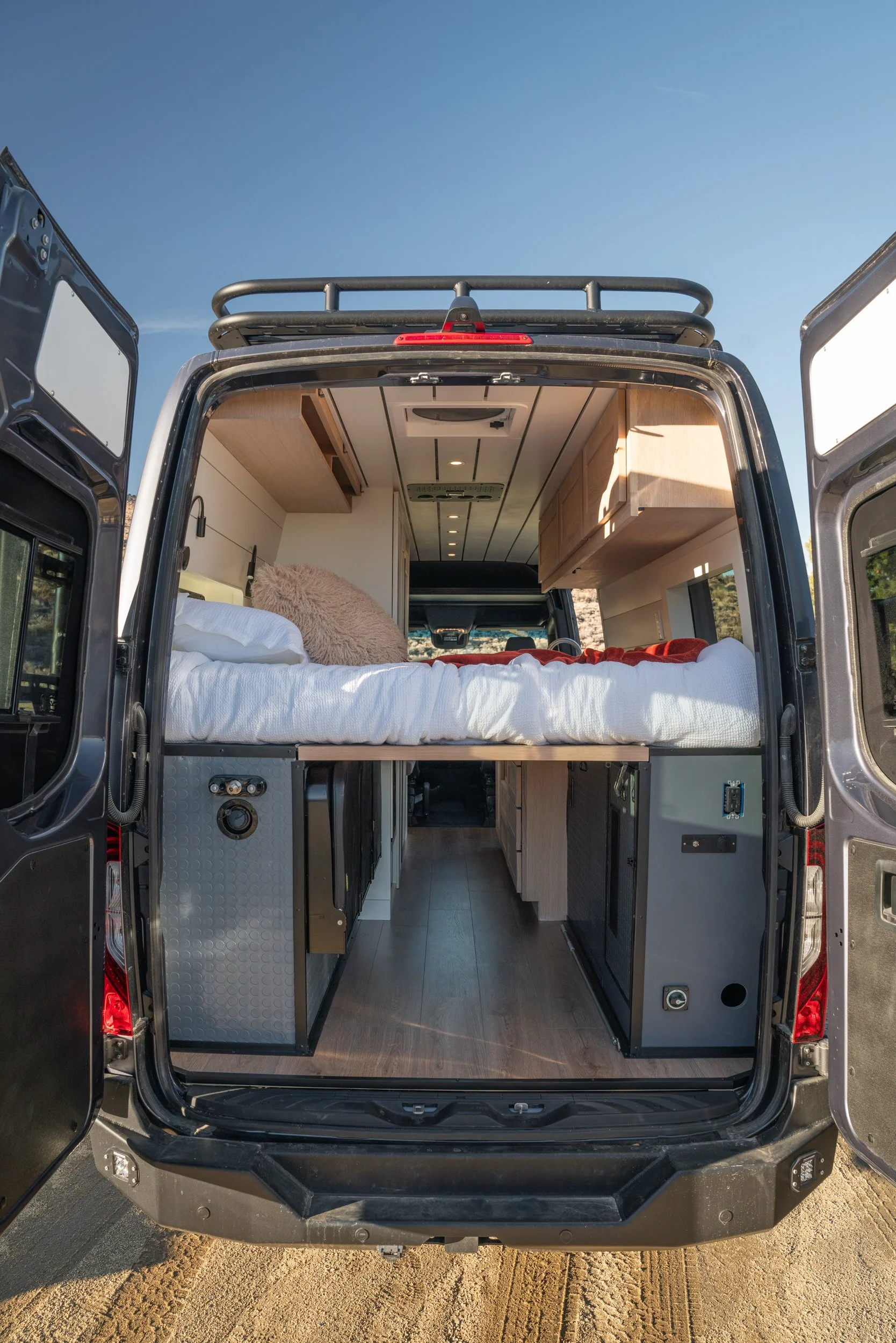

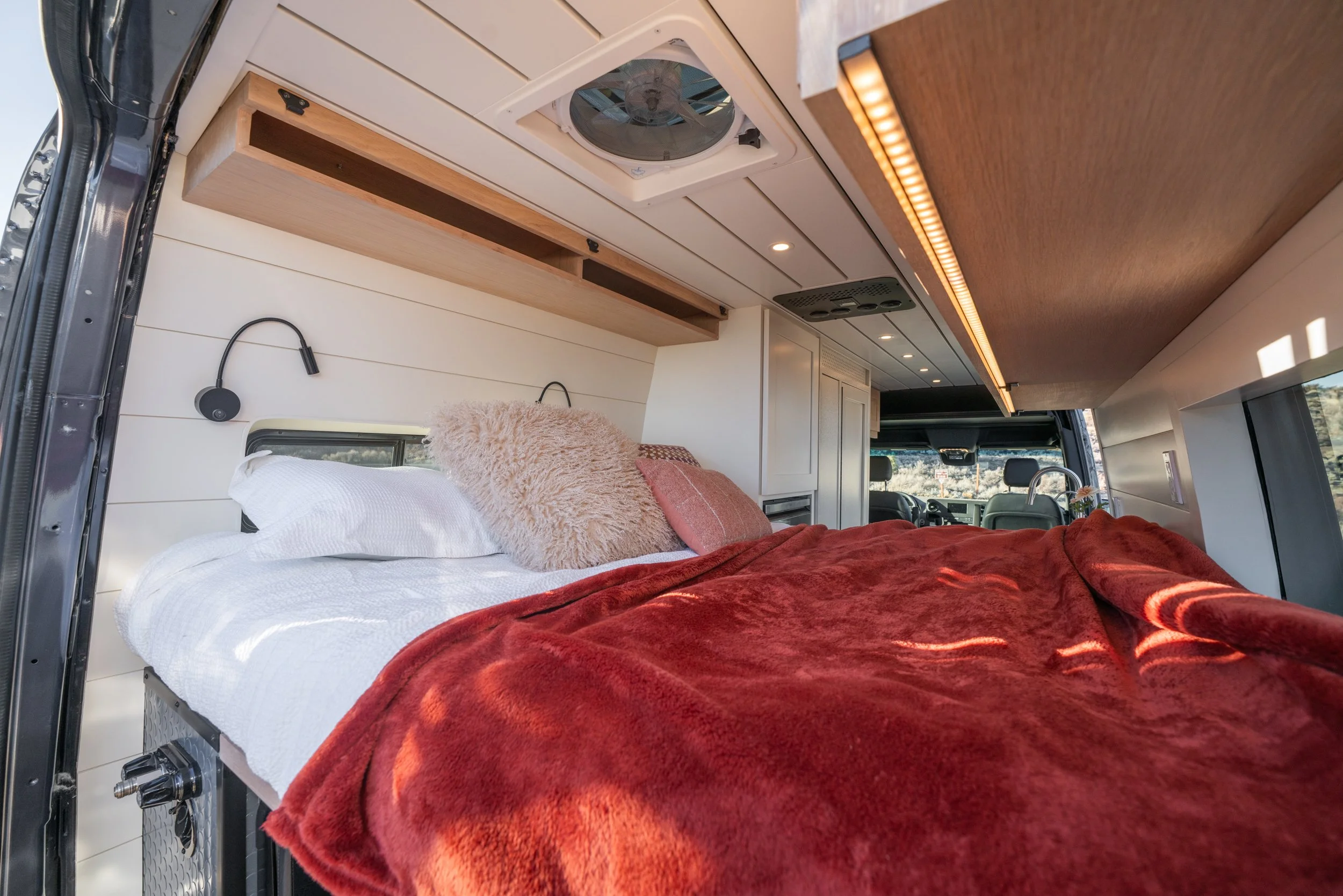

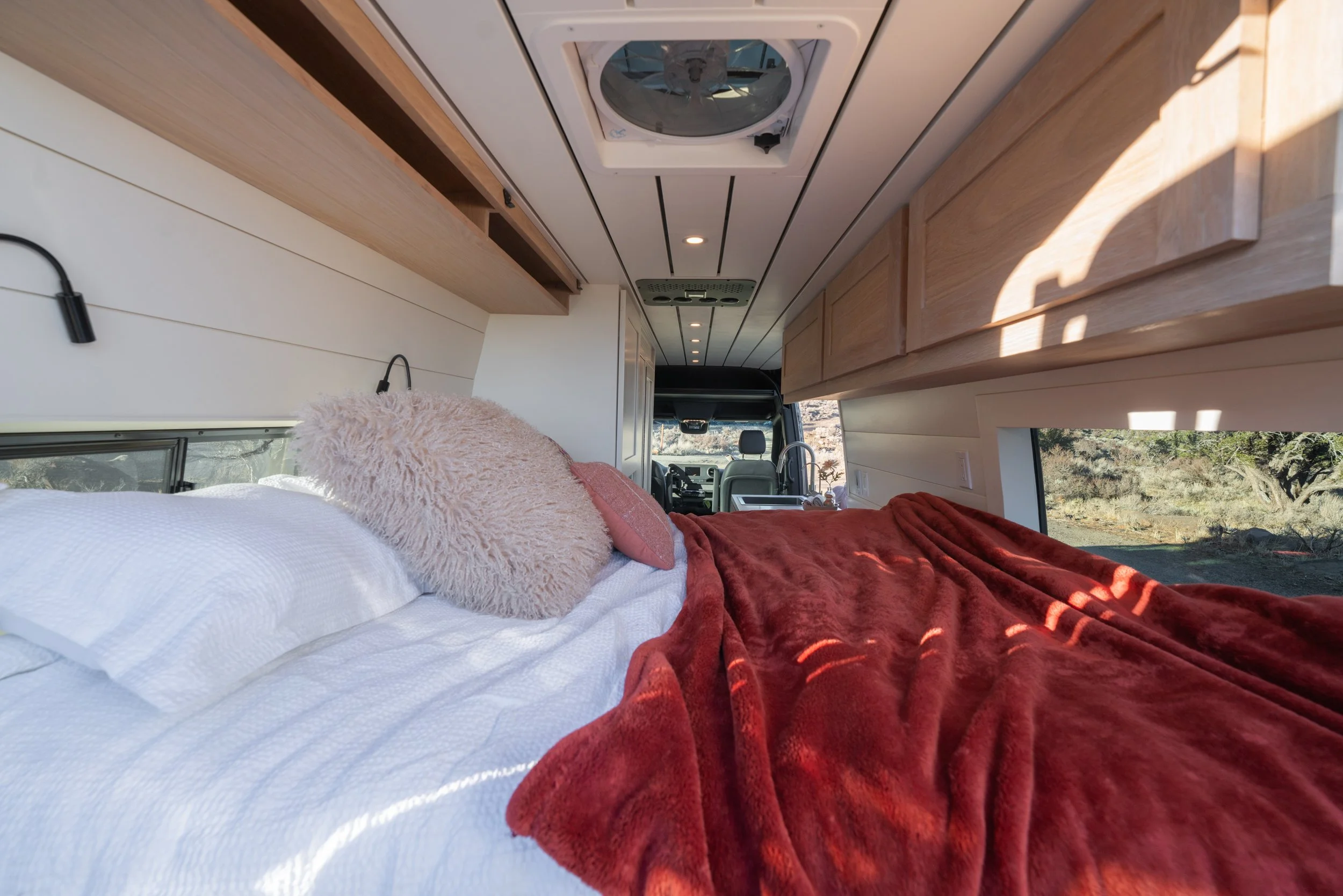

• Fold down murphy queen sized bed platform / memory foam mattress

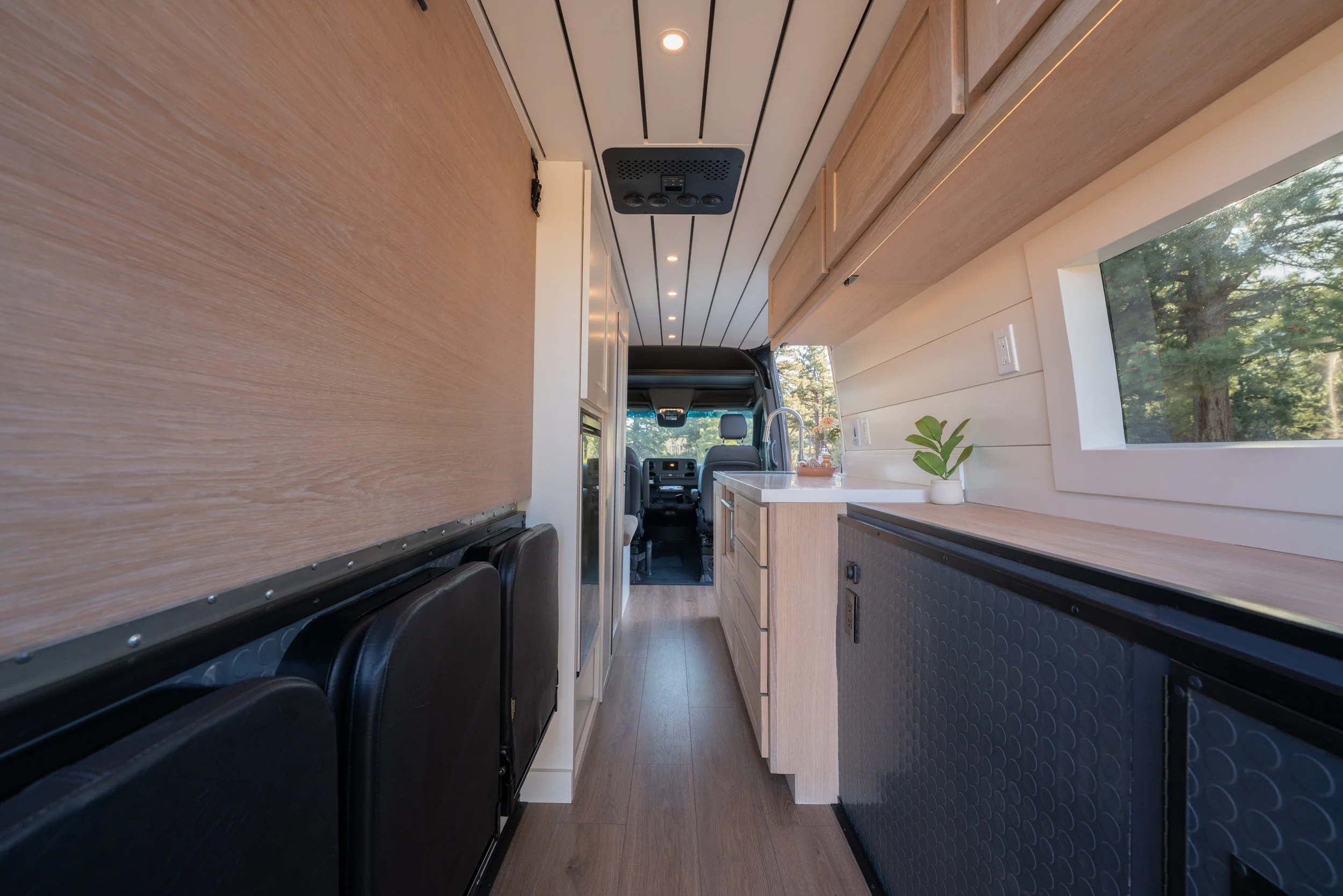

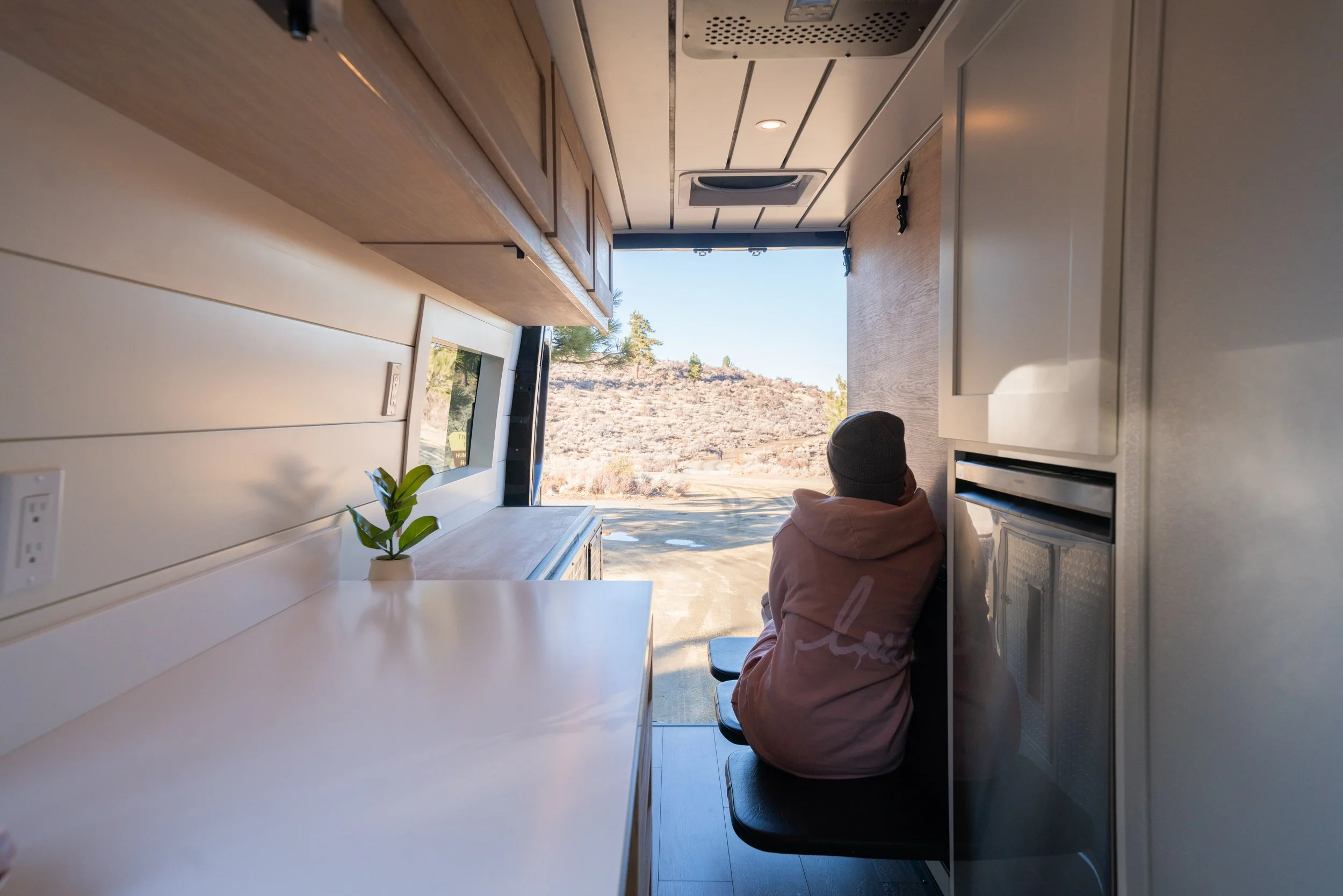

• Three flip down seats under murphy bed

• Driver and passenger swivel seats (factory installed)

• Telescoping table or two lagun tables

• Open concept garage / LED lighting inside garage

• Shiplap on ceiling and walls / laminate plank flooring

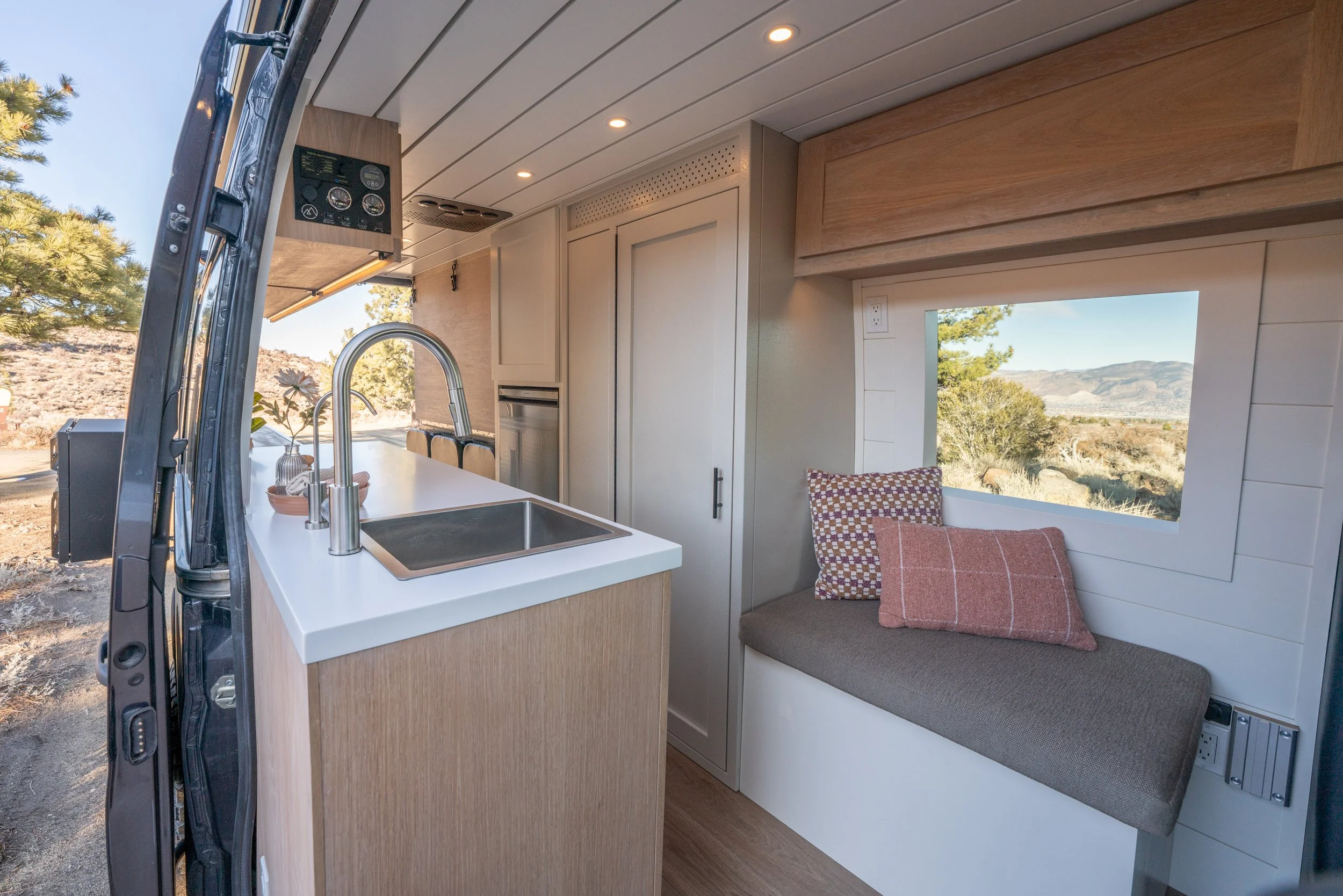

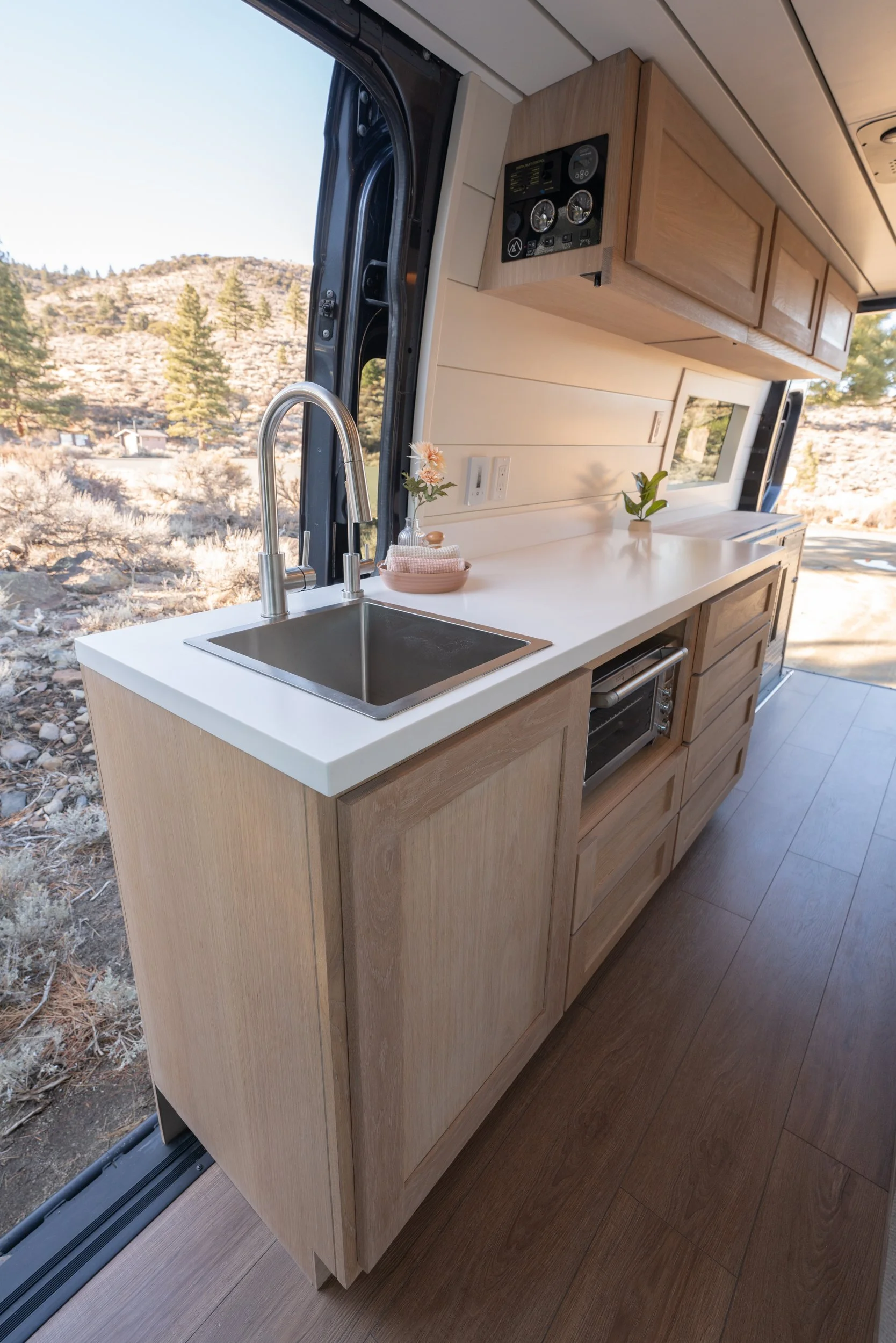

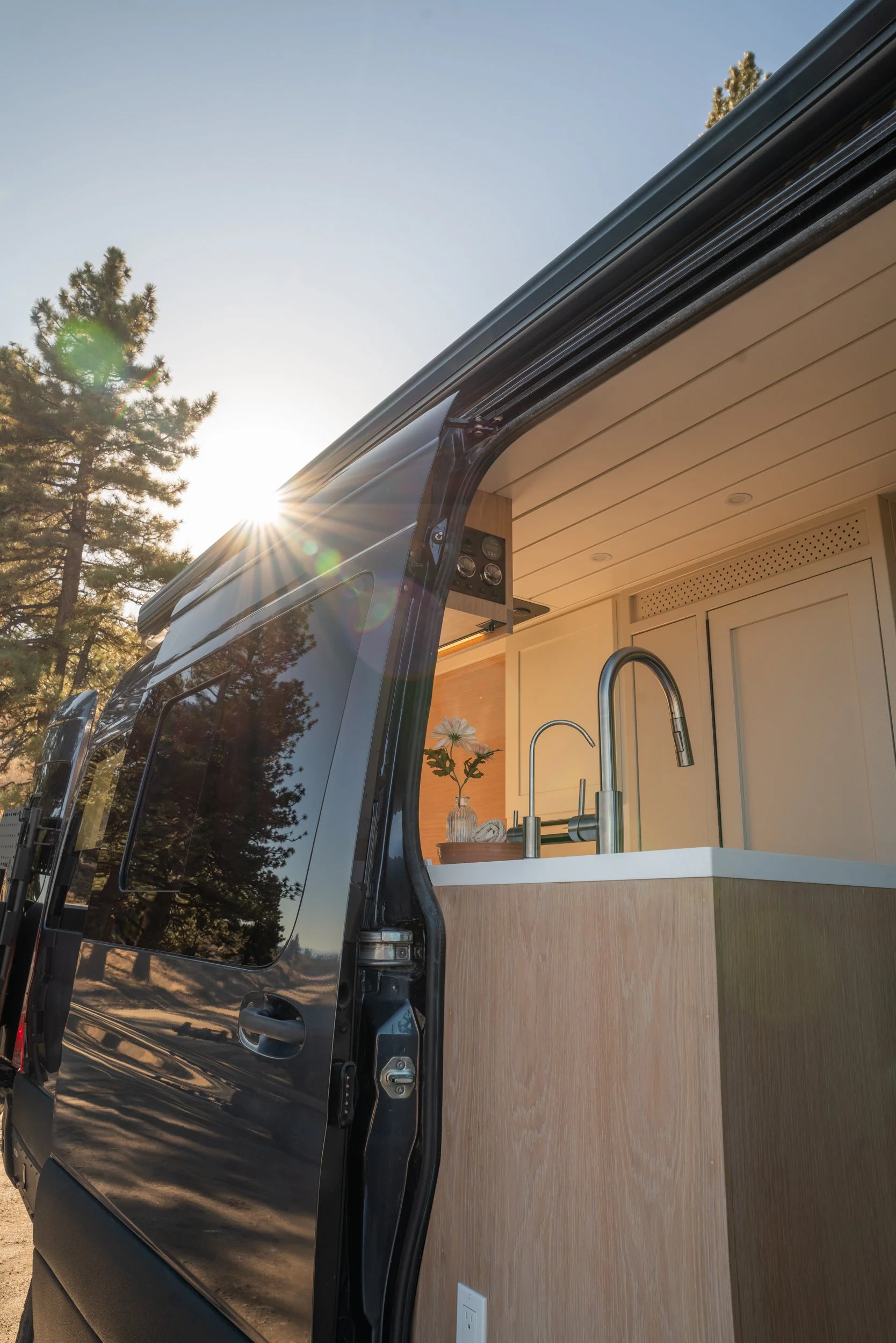

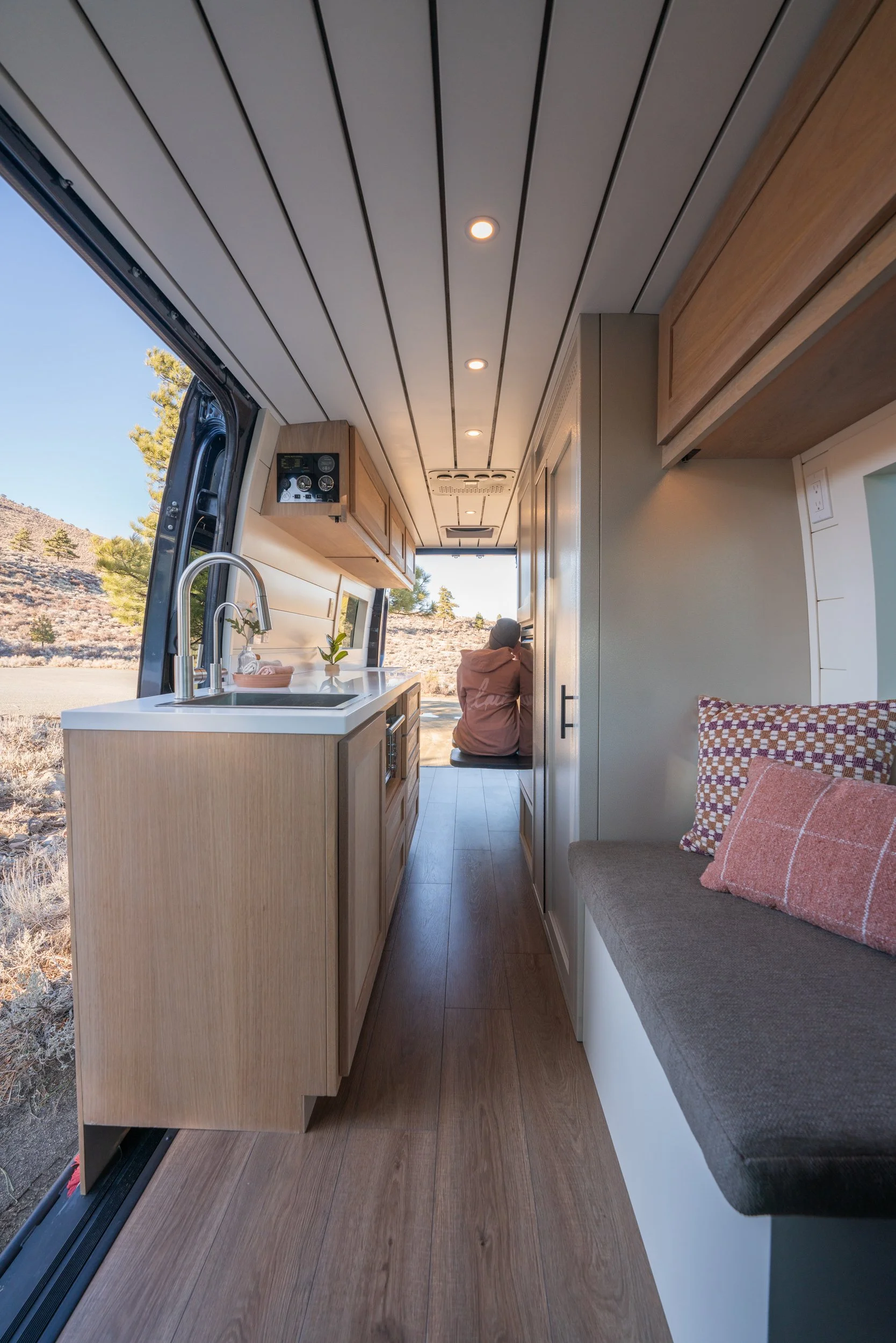

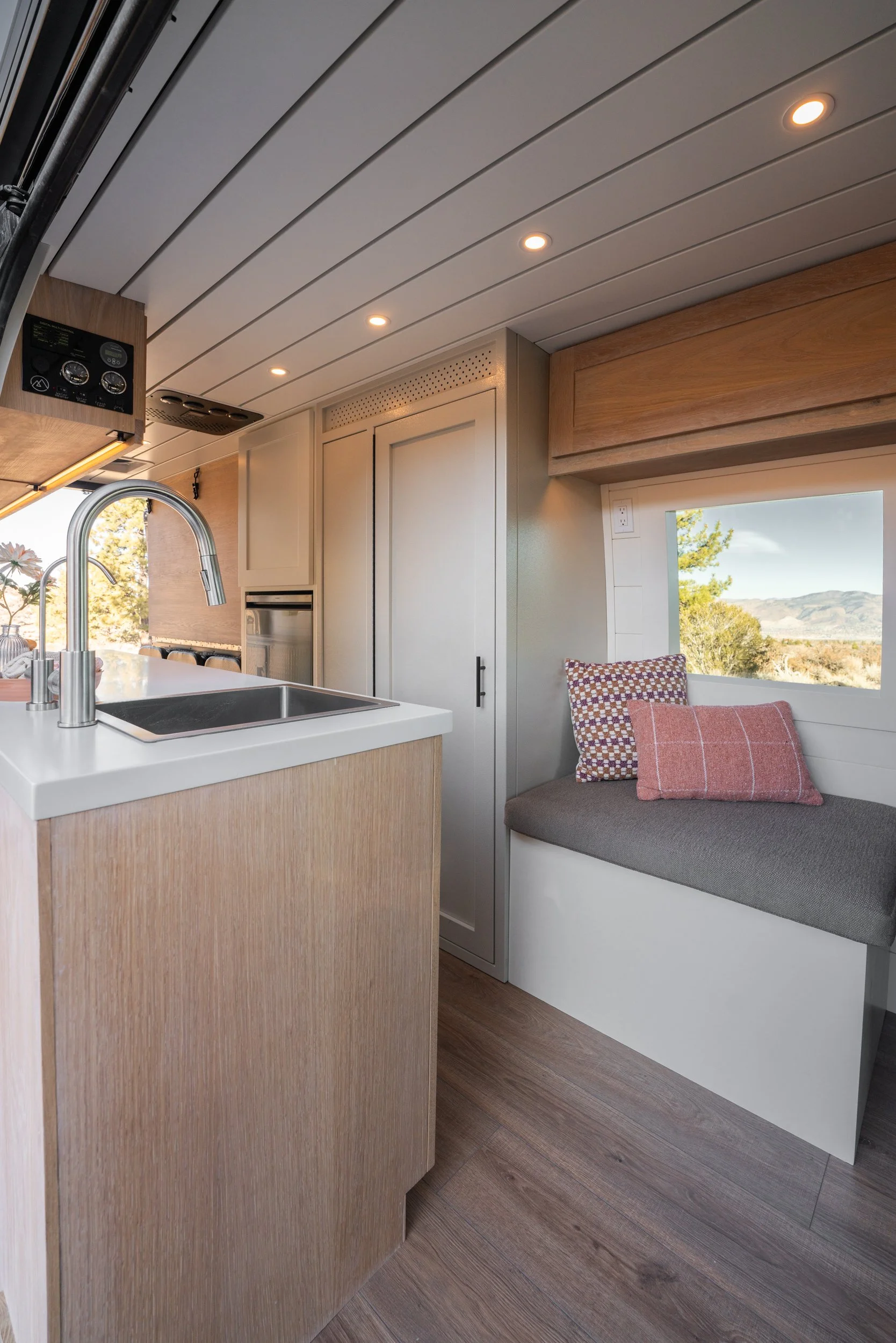

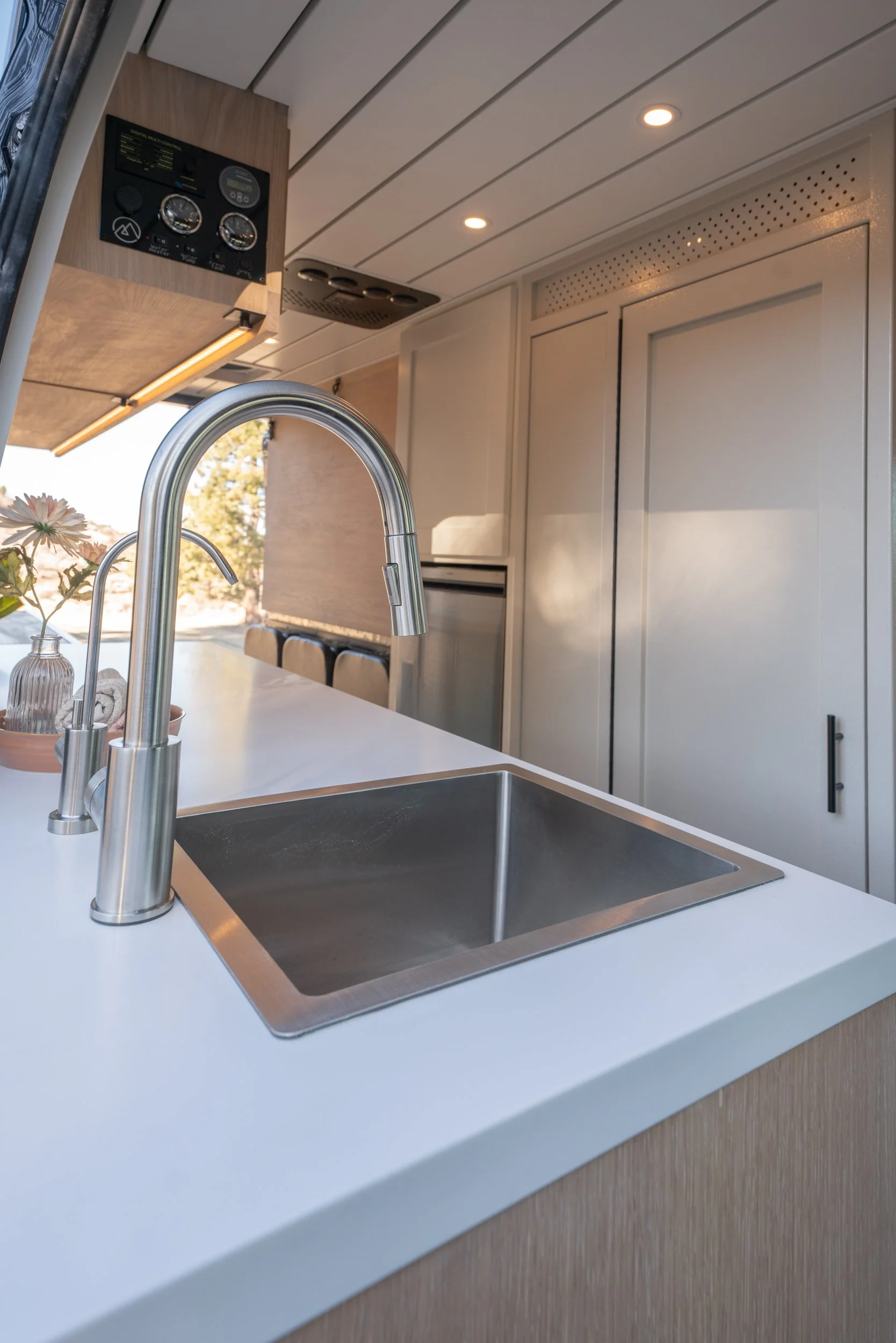

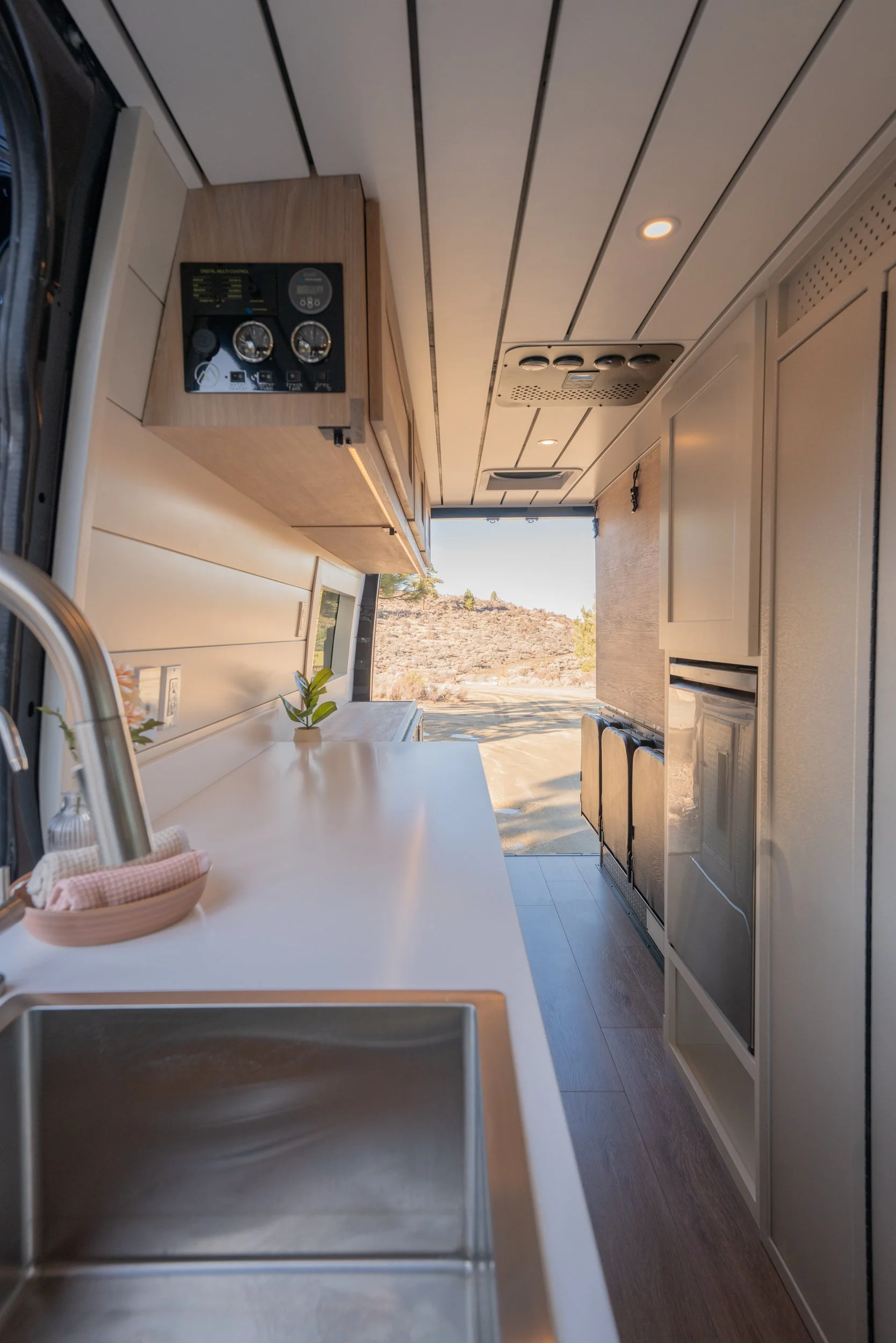

• Kitchen counter top in desired finish / Deep stainless steel or black sink / Retractable faucet

• Large drawer kitchen lowers / Breville The Smart Oven Pro

• Custom overhead cabinets / Pneumatic cabinet struts / RV grabber latches on all drawers

• Headliner storage shelf above driver/passenger cabin with black out curtain

• Sound deadening / Havelock Wool insulation

• Side window sliding door / Bedside window Left / Bedside window Right / Bench awning window driver’s sid

Water

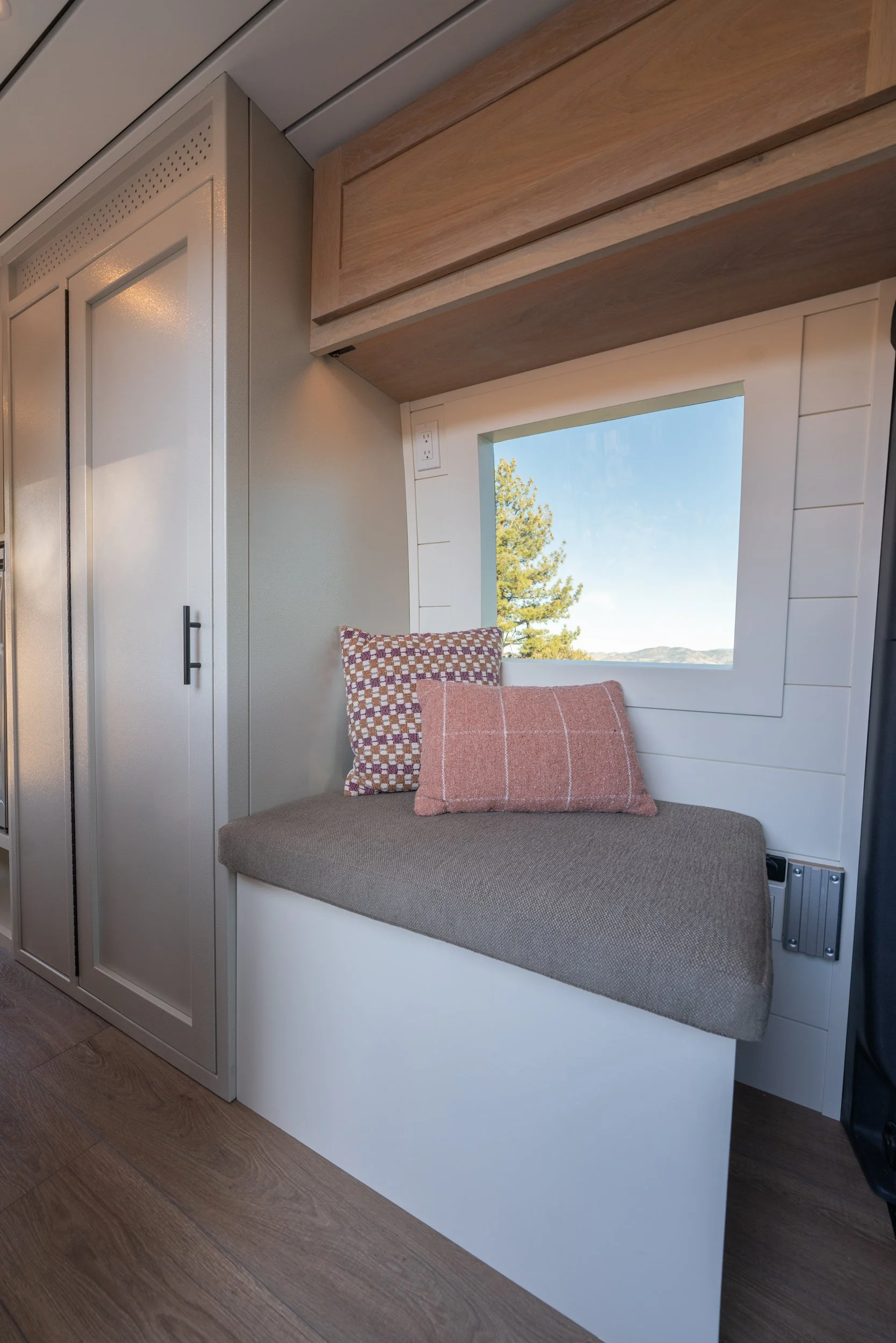

• Fully enclosed shower

• 24x36" shower pan / Shower lined in desired finish

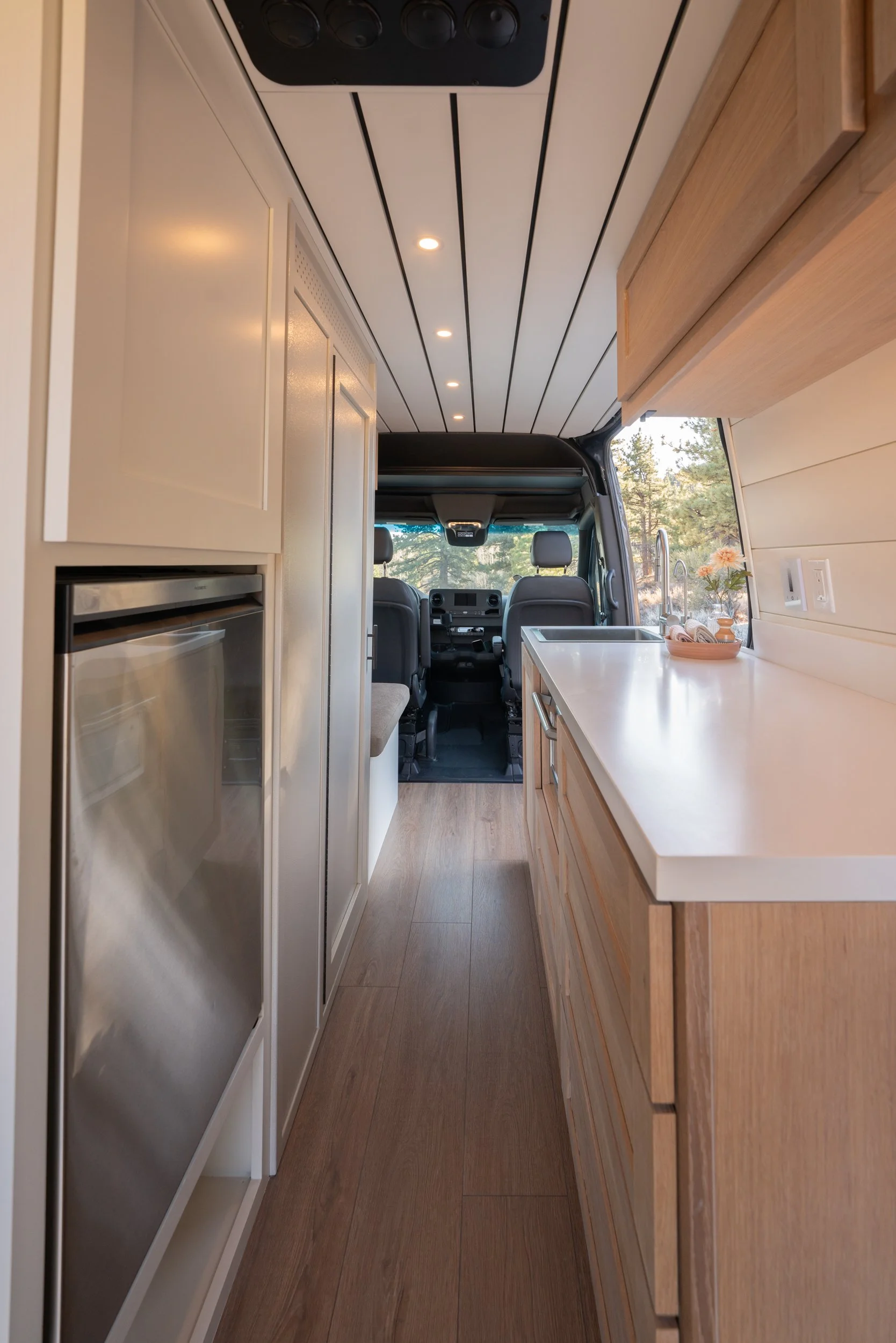

• Dometic NRX 130S fridge - Stainless Steel

• 42 gallon fresh water tank

• 20 gallon grey water tank for shower / 11 gallon grey water tank for sink

• Electric fresh water level gauge / Grey water level gauge

• 2.8GPM Seaflo water pump / Seaflo accumulator tank / Stealth fresh water fill

• Bosch 4 gallon electric hot water heater

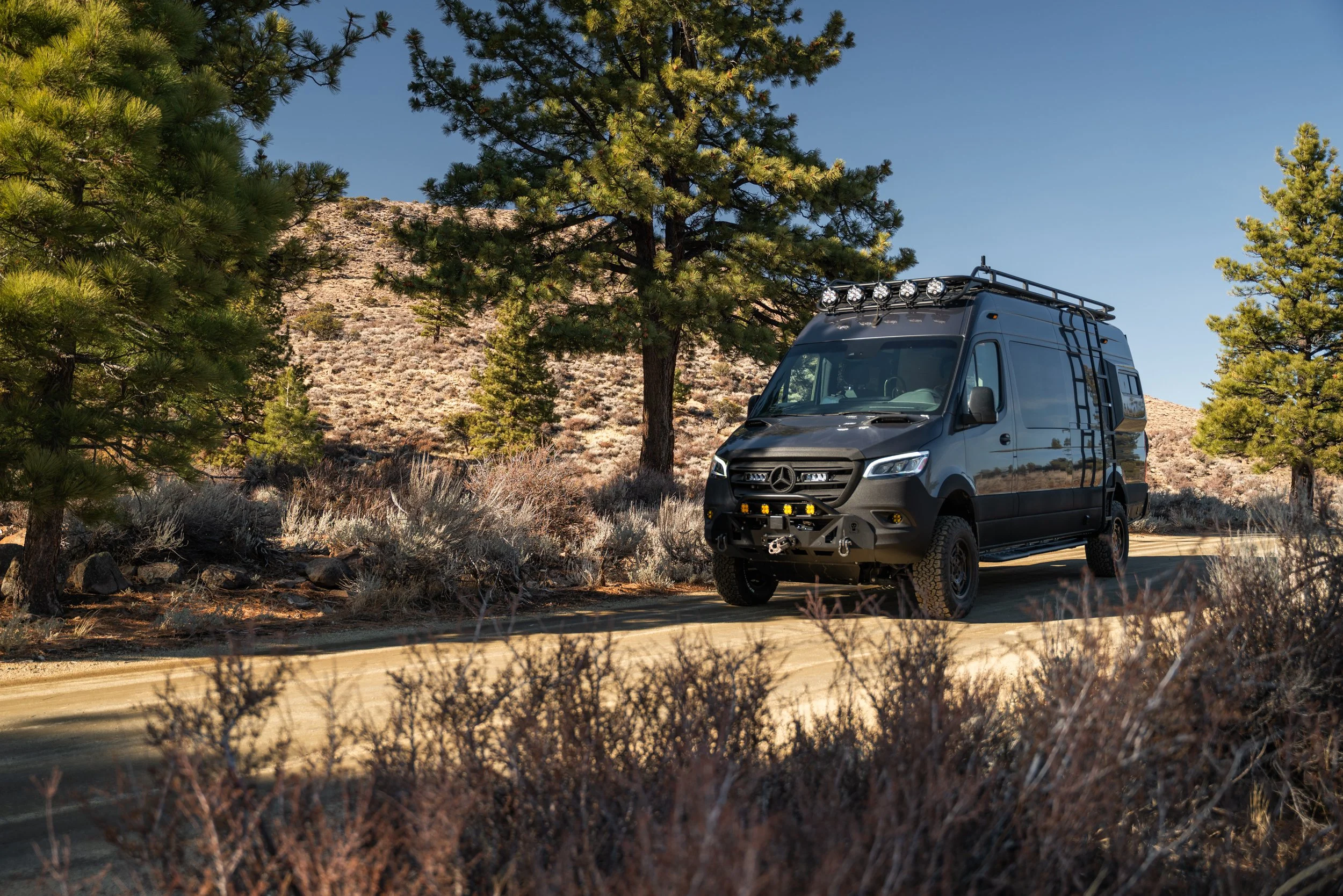

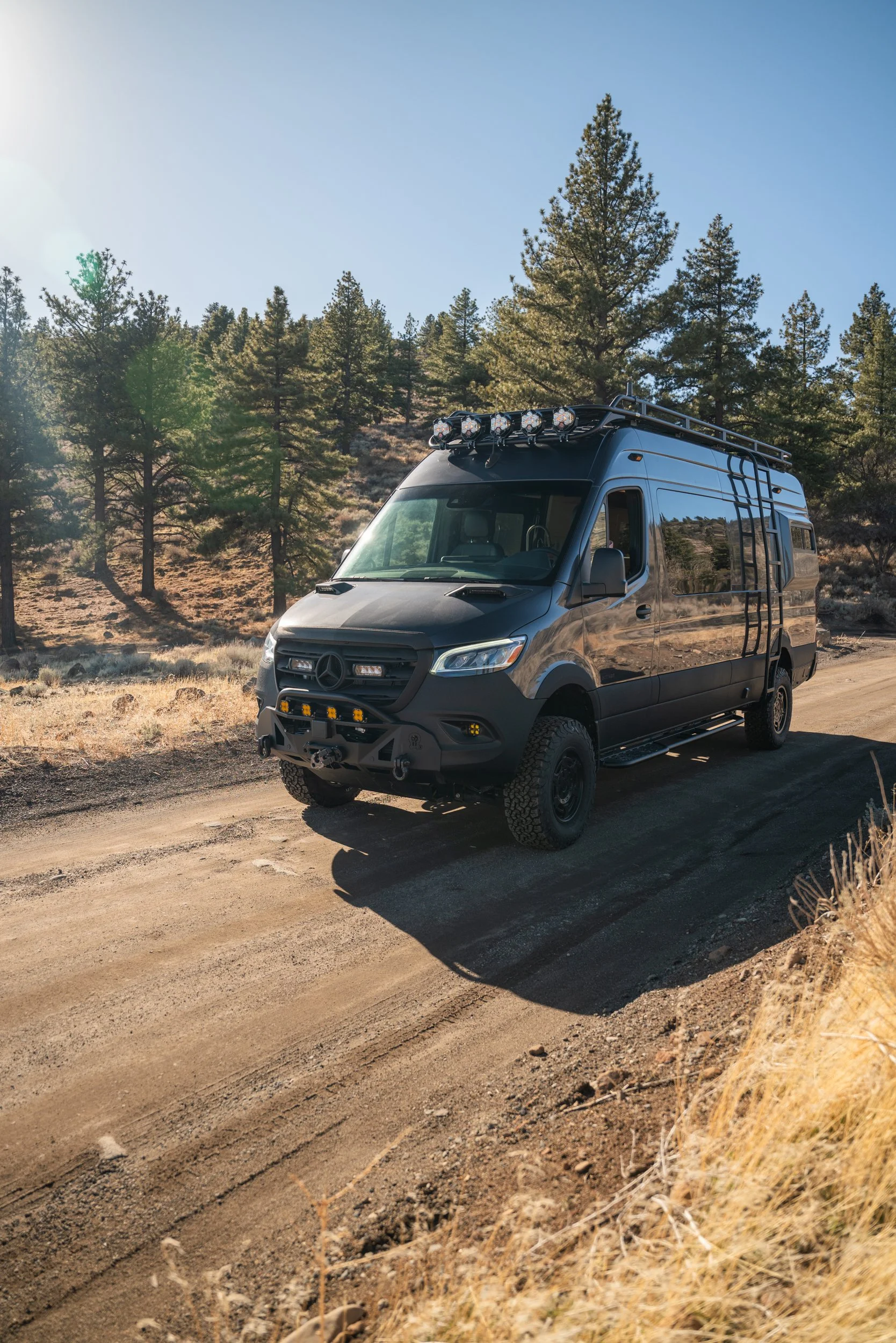

Exterior

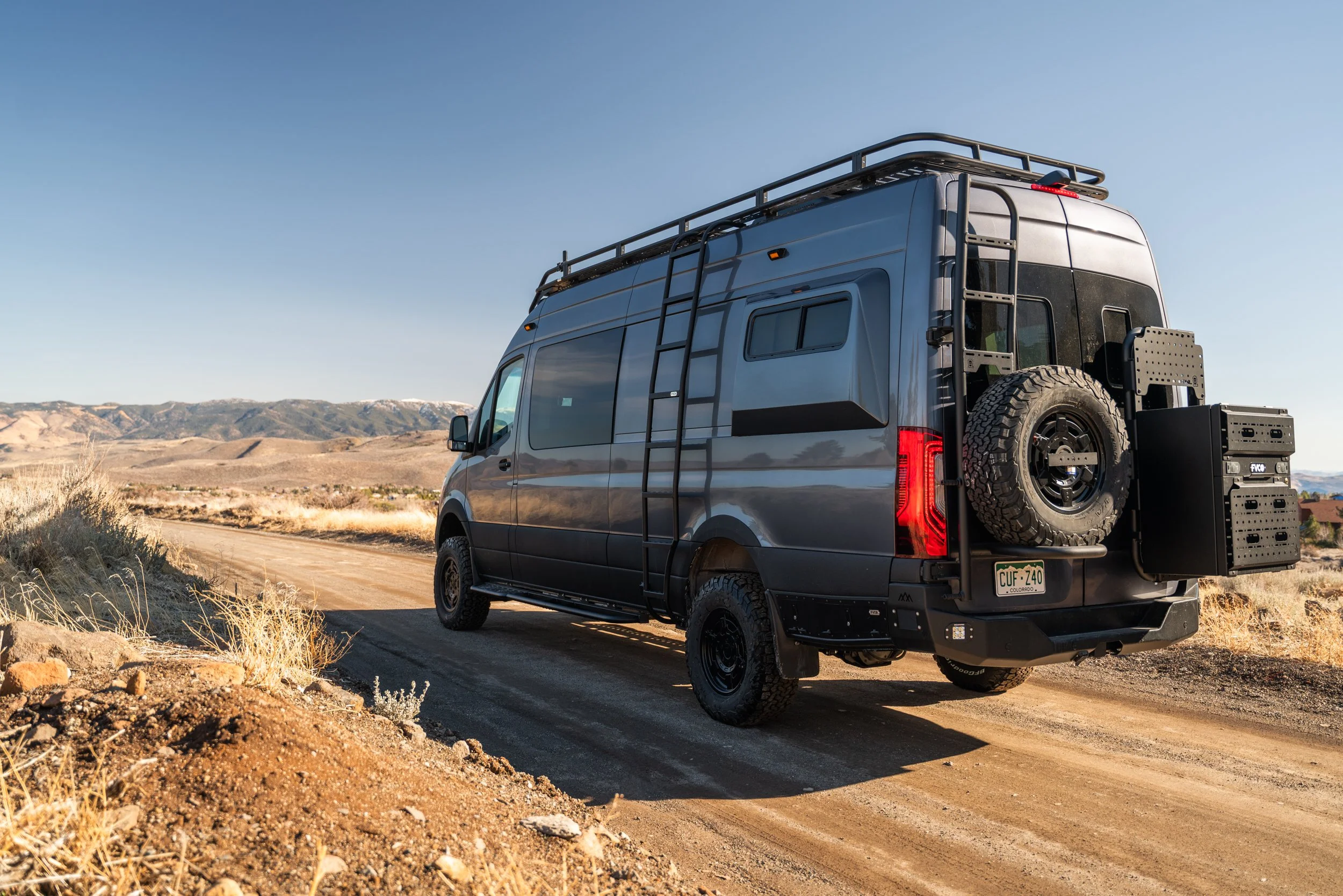

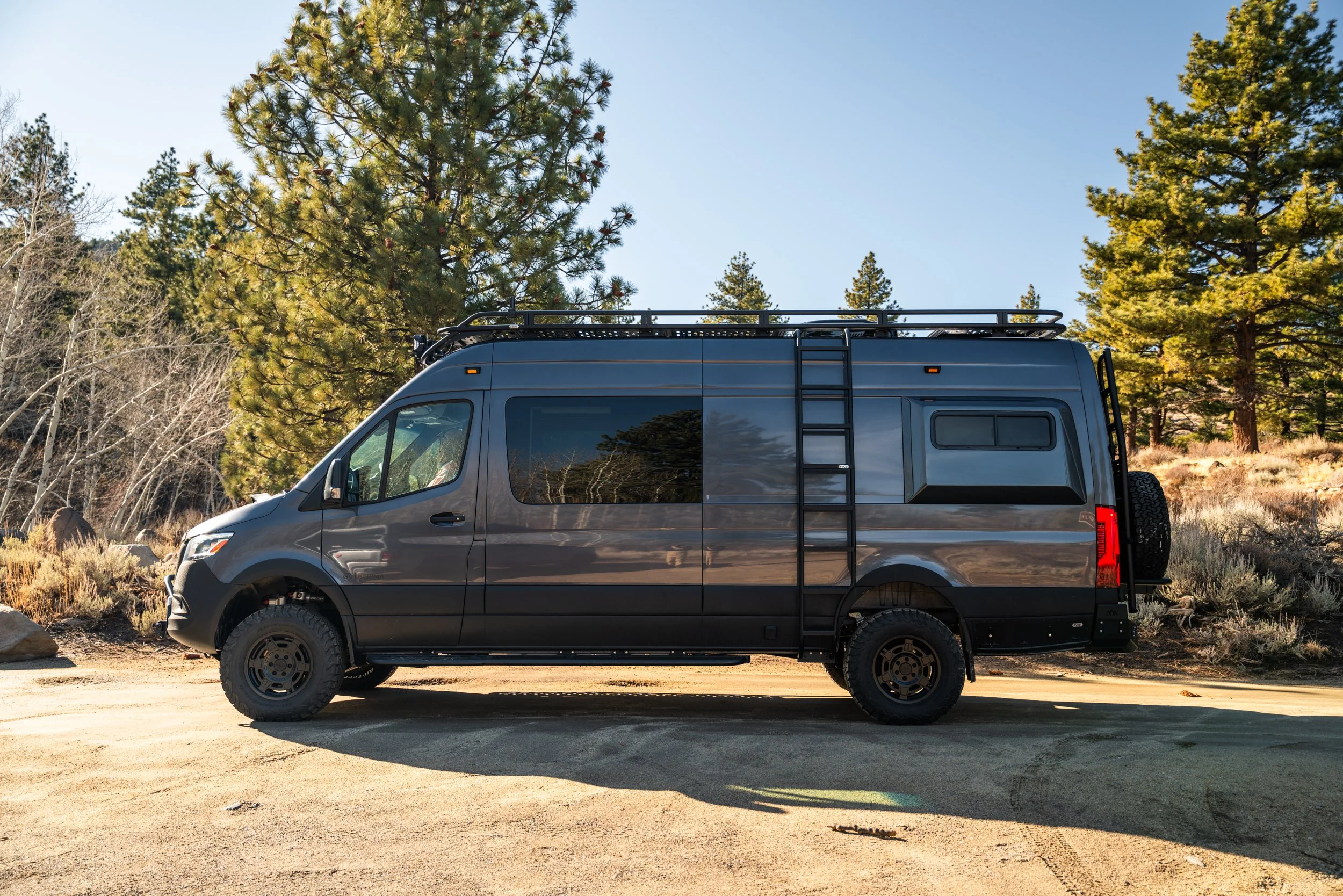

• FVC Side ladder

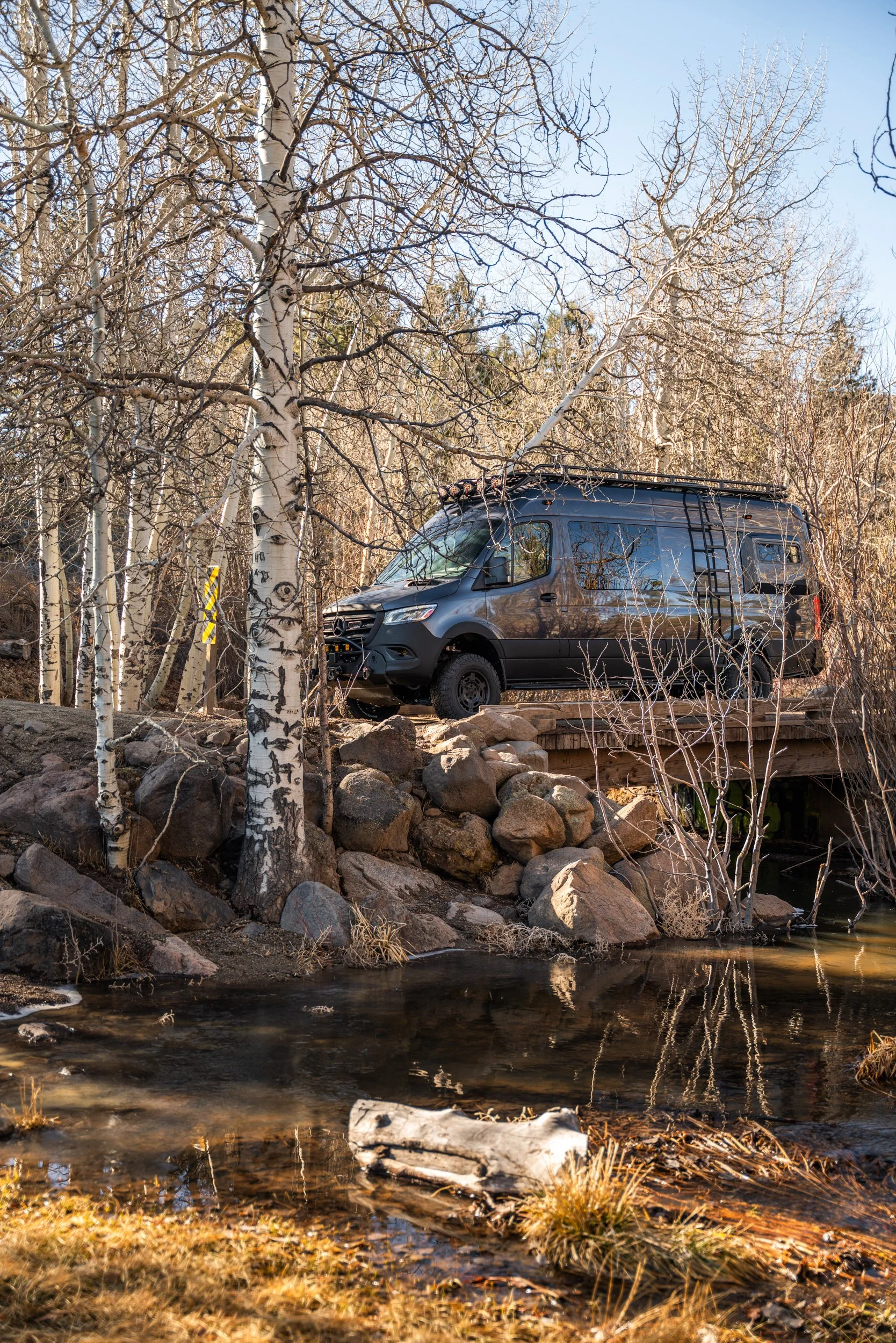

• FVC Low Pro Roof Rack

• LED light bar on roof front

Upgrade options

Exterior

Fiamma awning
FVC Safari Rack with Baja Designs LP6 or LP9 lights

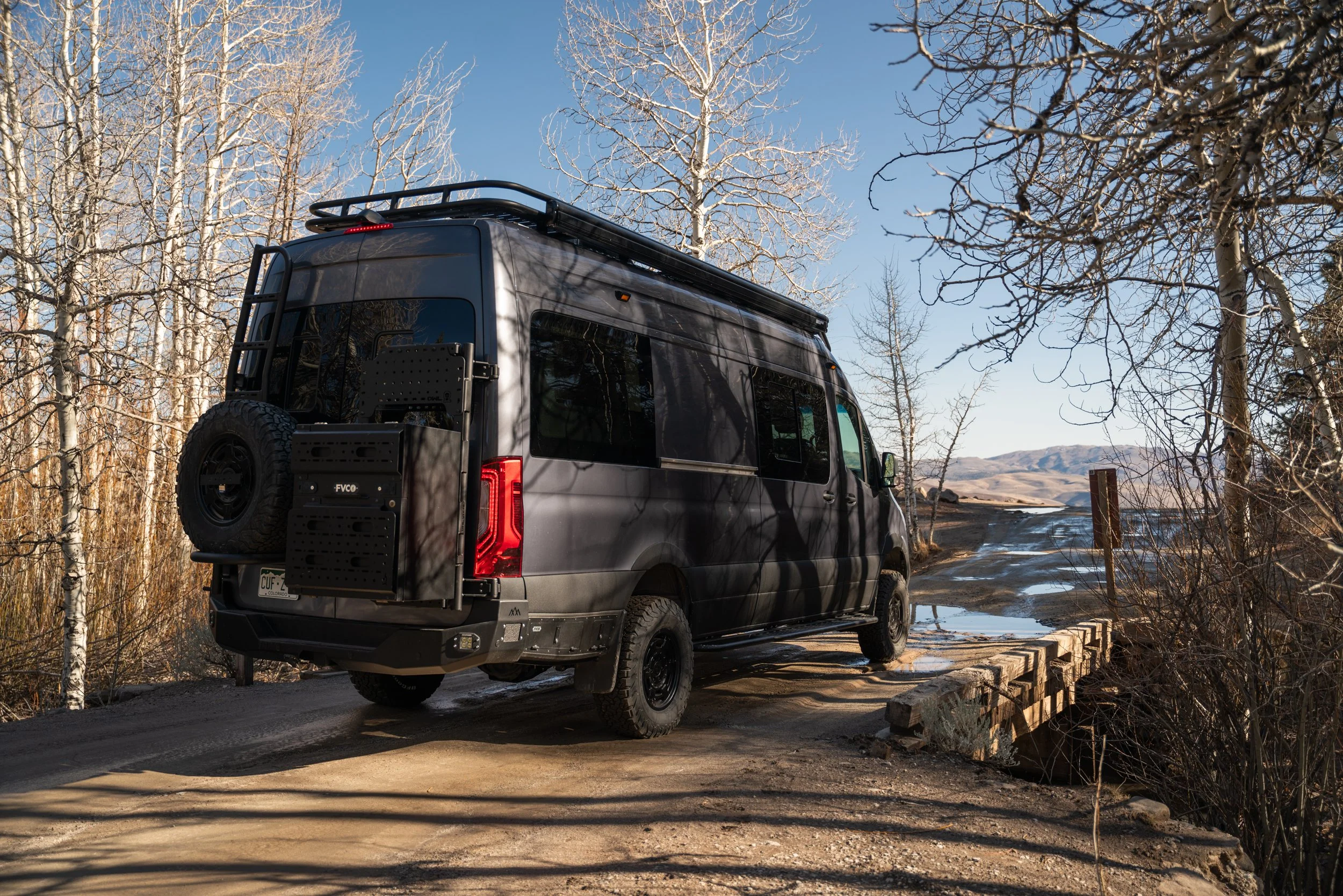

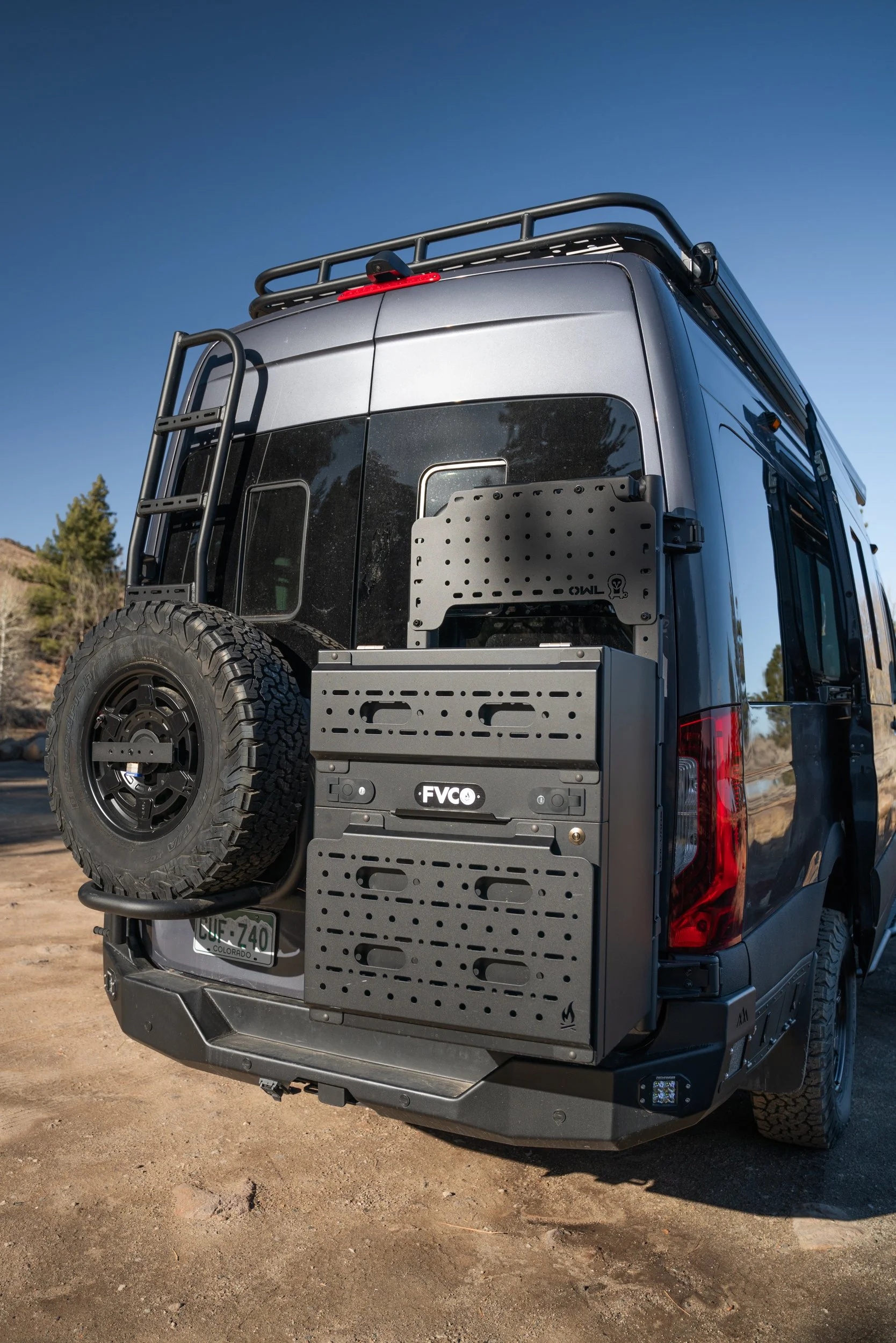

Any of Owl Vans exterior products - Owl Vans Tire Carrier, Sherpa Cargo Carrier, B2 Carrier, Storage boxes, Pismo front bumper, hitch step, etc
FVC Surf Pole + Surf Hooks
1UP Bike Racks
FVC Side steps

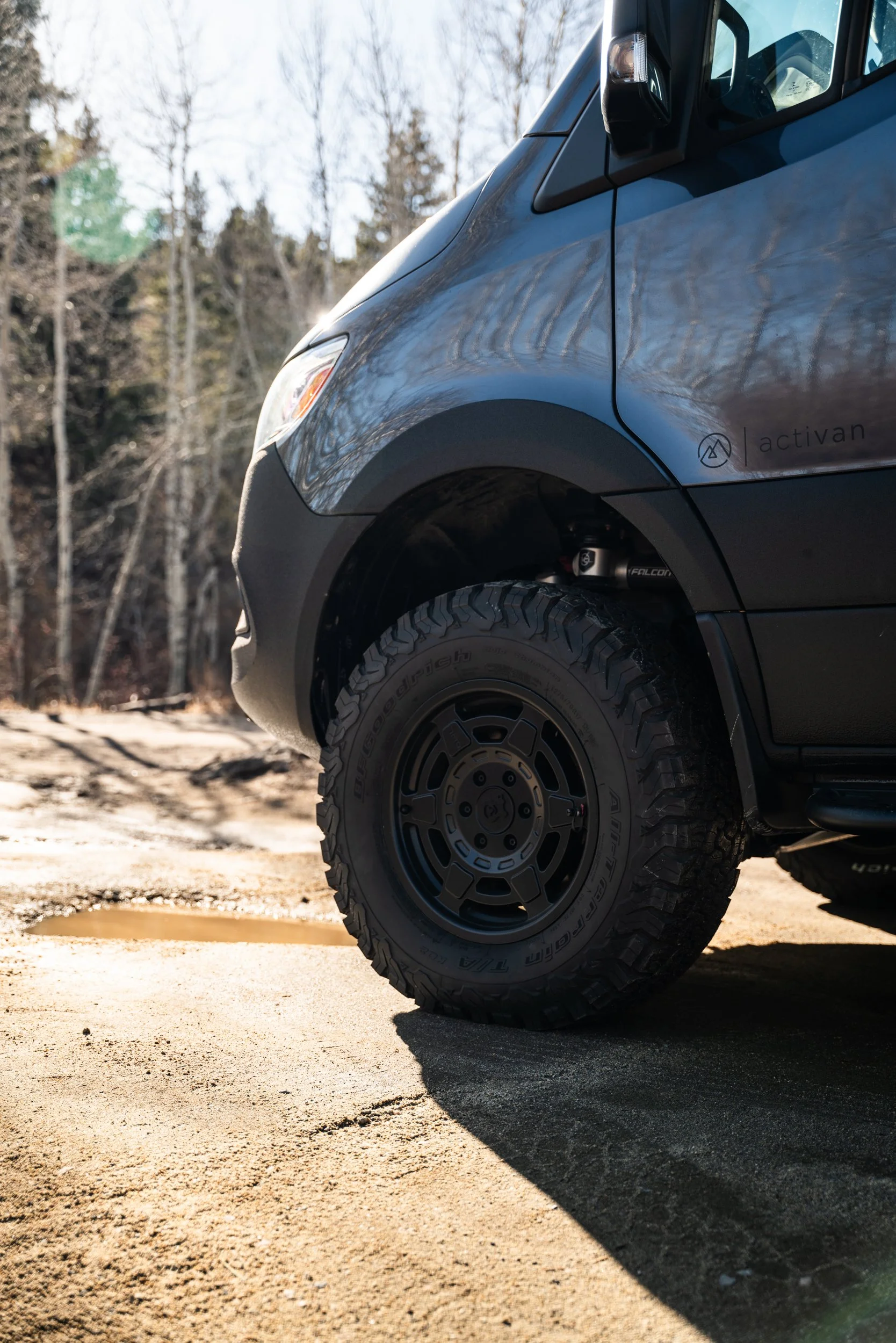

5 x Black Rhino wheels + AT Tires

Interior
